JB Type Aluminium Parallel Groove Clamp Cable Wire Cross Connection Parallel Clip
Beskriuwing:
JB type dirigint diameter fariaasje parallelle groove clamp is oer it algemien geskikt foar net-duorsume spanning ferbining mei middelste & lytse seksje aluminium strâne tried of ACSR of stielen strâne tried op overhead lightening dirigint;oan 'e oare kant is it ek fan tapassing foar springlineferbining fan net rjochte peal en toer.Op grûn fan ferskate materialen binne parallele grooveklemmen makke fan izer, aluminium, koper ensafuorthinne.

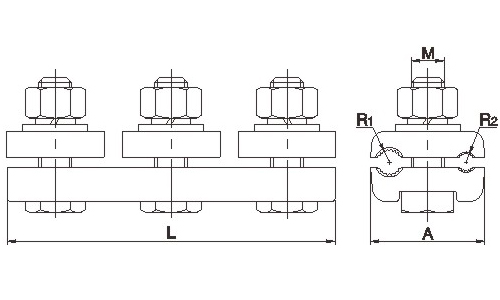

| Type | Tapasbere konduktordiameter | Diminsje | Bolt Quantity | ||||
| Haadline | Branch Line | R1 | R2 | L | |||
|
| JB-10 | 35~50 | 16~25 | 5.5 | 4.0 | 80 | 2-M12*45 |
| JB-20 | 70~95 | 16~25 | 7.5 | 4.0 | 108 | 3-M12*50 | |
| JB-21 | 70~95 | 35~50 | 7.5 | 5.5 | |||
| JB-30 | 120~150 | 16~25 | 9.0 | 4.0 | 140 | 3-M16*60 | |
| JB-31 | 120~150 | 35~50 | 9.0 | 5.5 | |||
| JB-32 | 120~150 | 70~95 | 9.0 | 7.5 | |||
| JB-40 | 185~240 | 16~25 | 11.0 | 4.0 | 144 | 3-M16*65 | |
| JB-41 | 185~240 | 35~50 | 11.0 | 5.5 | |||
| JB-42 | 185~240 | 70~95 | 11.0 | 7.5 | |||
| JB-43 | 185~240 | 185~240 | 11.0 | 9.0 | |||
| It lichem en de keeper binne makke fan aluminium alloy, oare dielen binne makke fan hot dip galvanized stiel. | |||||||
